| Quantity: | |
|---|---|

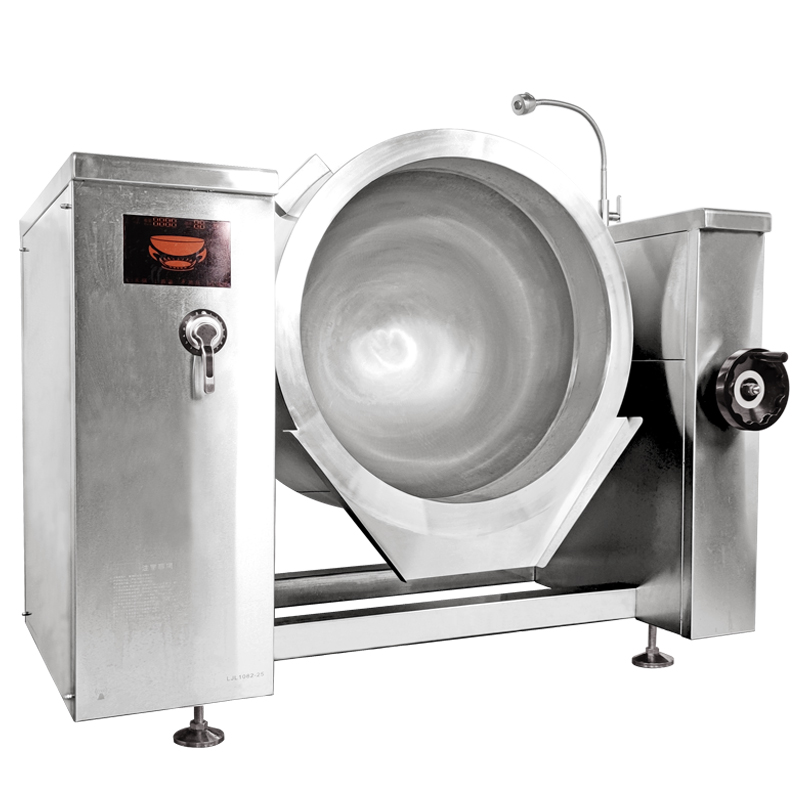

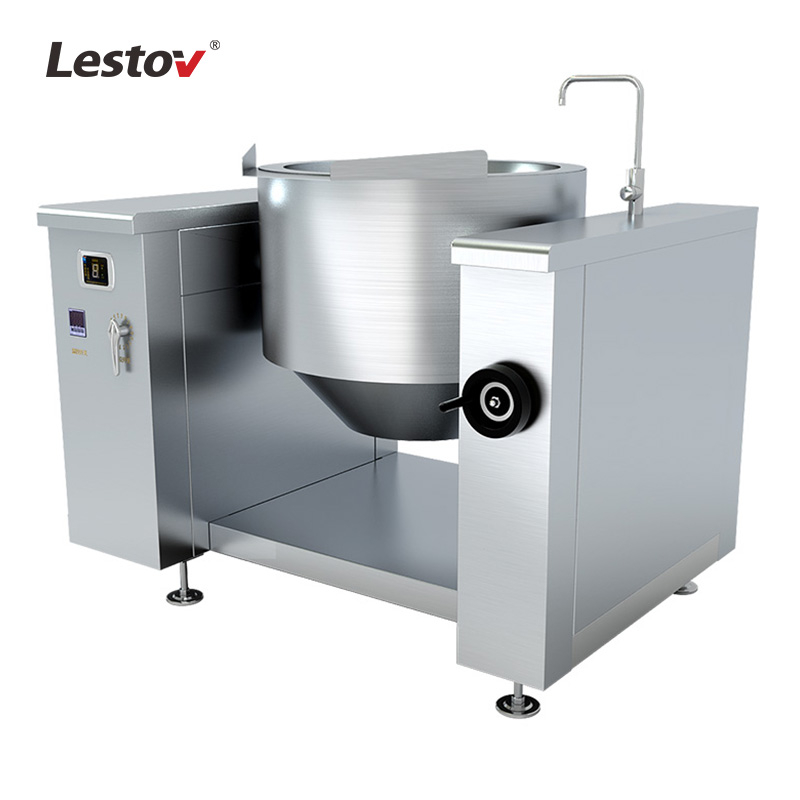

| Tilting commercial induction soup machine | ||
Model | LT-YB700 | |
Dimensions | Height | 1100 mm |
Width | 900 mm | |
Depth | 1500 mm | |
Electric Requirement | Watts | 20kw |
Voltage | 380 v | |
Phase | 3 Ph | |
Material | Stainless steel # 304 | |
Soup Stock-pot Diameter | 700 mm | |
Soup Stock-pot Height | 500 mm | |
Soup-bucket Volume | 150 L | |
Packing Type | Wooden box | |
Net Weight | 150 kg | |
Shipping Weight | 300 kg | |
Warranty | 1 year | |
Certificate | CE | |
Application | Canteen of factory, school, restaurant, etc | |
Cooking Ways | Boiling and heating for soup and water... | |
Model | Size (mm) | Power (Kw) | Voltage (V) | ||
Depth | Width | Height | |||
LT-YB700-E120 | 1500 | 900 | 1100 | 20 | 380 |
LT-YB800-E125 | 1600 | 1000 | 1200 | 25 | |
LT-YB900-E130 | 1700 | 1100 | 1300 | 30 | |
LT-YB1000-E135 | 1800 | 1200 | 1400 | 35 | |
The shell material is made of #400 oil-film snowflake board, easy-to-clean and safe for food;
With one-time bending forming panel, the whole machine is waterproof and anti-scaling;
Phenolic resin chrome-plated inner wave hand wheel, manual swing design for pouring soup down so easy;
Save time, save labor, high-end and more durable;
High-grade universal faucet, easy to use, 13.35mm water inlet connector;
360 degree knob switch makes the operation simple and convenient;
Perfect safety features, such as water shortage protection device, anti-dry protection, 3 hours auto shutoff, over / low voltage protection, overheat protection, over current protection;
More than 95% energy efficiency and eco-conscious designs;
Be adaptable to voltage fluctuation, range from 340~430 v;
8 firepower settings allow you for perfect heating and stewing for big volume soup;
Easy to read LED display & IPX4 protection level.
Advanced induction heating technology:
The principle of electromagnetic induction is the high-frequency alternating current generate an alternating magnetic field which is continuously changed direction by the coil disk, and a vortex is generated inside the pot body in the alternating magnetic field, so the food can be directly cooked by the heat generated from the pot body.
